Granular Dynamics Laboratory

Since July 2010, the Granular Dynamics Laboratory is operative – originally in room “010” and (from november 2012) –  in room “012” (ground floor of Fermi Building of the Physics Department) at the Sapienza unit of ISC. The laboratory includes two main experimental setups:


  1. Vertical vibration (2d and 3d granular experiments): an electrodynamic shaker LDS V455, which can reach a maximum acceleration of 105g, powered by a PA1000L power amplifier. The amplifier receives the signal from a signal generator board in a personal computer. Particle tracking data are collected by a fast camera (MIKROTRON EO-SENS CL) which reaches 506 frames per second at full resolution (1280×1024) or faster at reduced resolutions.
  2. Inclined plane with vibrating pistons (2d granular experiments): the inclined aluminium plane has a variable tilt-angle to control effective gravity, lateral lighting, two vibrating pistons (actuated by rotating engines) on the short sides (usually the topmost and the lowest ones) inject energy. Particle images are collected by a new fast camera (Photron MiniUX50) which gets 1.3Mp at 2Kfps with colours.


Details of setup 1: the camera frames are sent, through a camera-link cable, to a framegrabber embedded in the personal computer, where they are directly stored in the pc ram. The pc is equipped, at the moment, with 10Gb of ram, which allows to memorize about 10^4 frames without interruption. The sample receives ligth from a “led dome” which is designed to uniformly distribute lighting on the system.

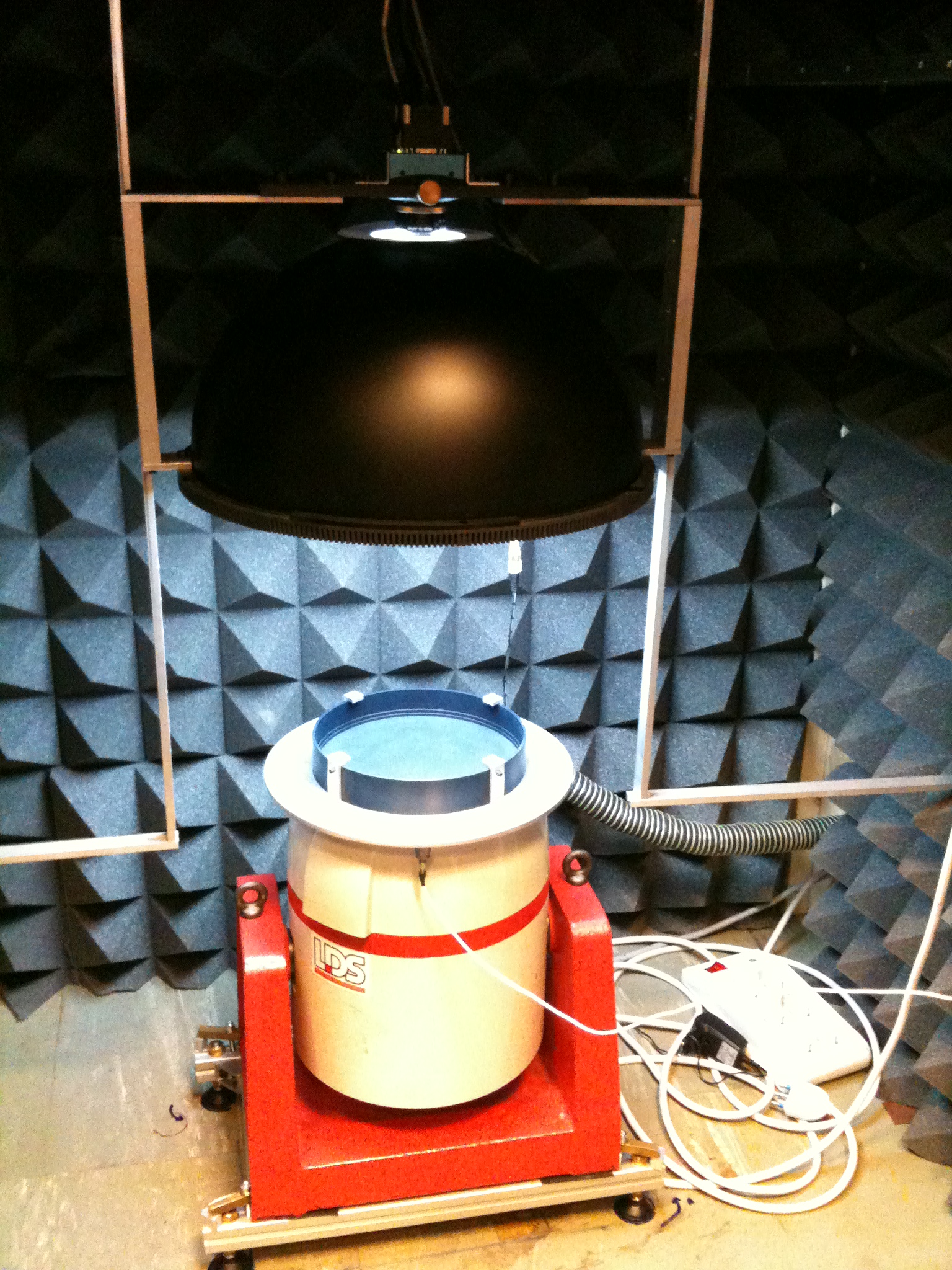

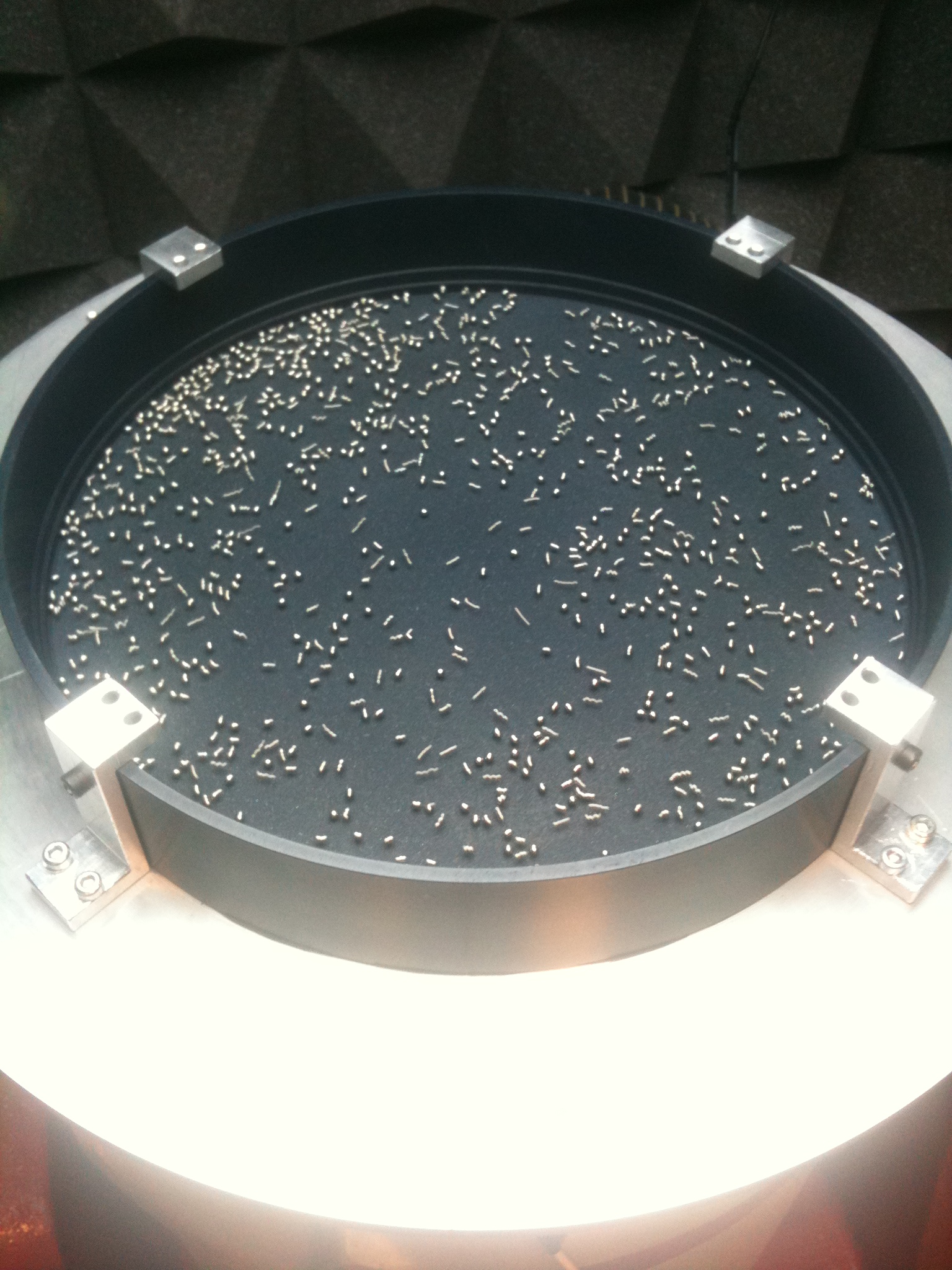

The picture shows one of the first used experimental setups, conceived to produce a granular 2D fluid/solid: spheres (delrin, glass or steel, diameter ranging from 1mm to 4mm, packing fraction from 0 up to 0.9) are placed over a horizontal aluminium plate with boundaries preventing spheres from getting out. The plate has a finely rough surface (on a scale smaller than the sphere diameter). The shaker gives vertical motion to the plate. Vertical energy is transfered to horizontal motion of the spheres through plate roughness and through sphere-sphere collisions. An example of the fluid granular state can be found in the following video:

The two papers covering experimental results (density and velocity structure factors, explained by fluctuating hydrodynamic theory) with such a setup are

G. Gradenigo, A. Sarracino, D. Villamaina and A. Puglisi
Growing non-equilibrium length in granular fluids: from experiment to fluctuating hydrodynamics
Europhys. Lett. 96, 14004 (2011)

A. Puglisi, A. Gnoli, G. Gradenigo, A. Sarracino and D. Villamaina
Structure factors in granular experiments with homogeneous fluidization
J. Chem. Phys. 136, 014704 (2012)

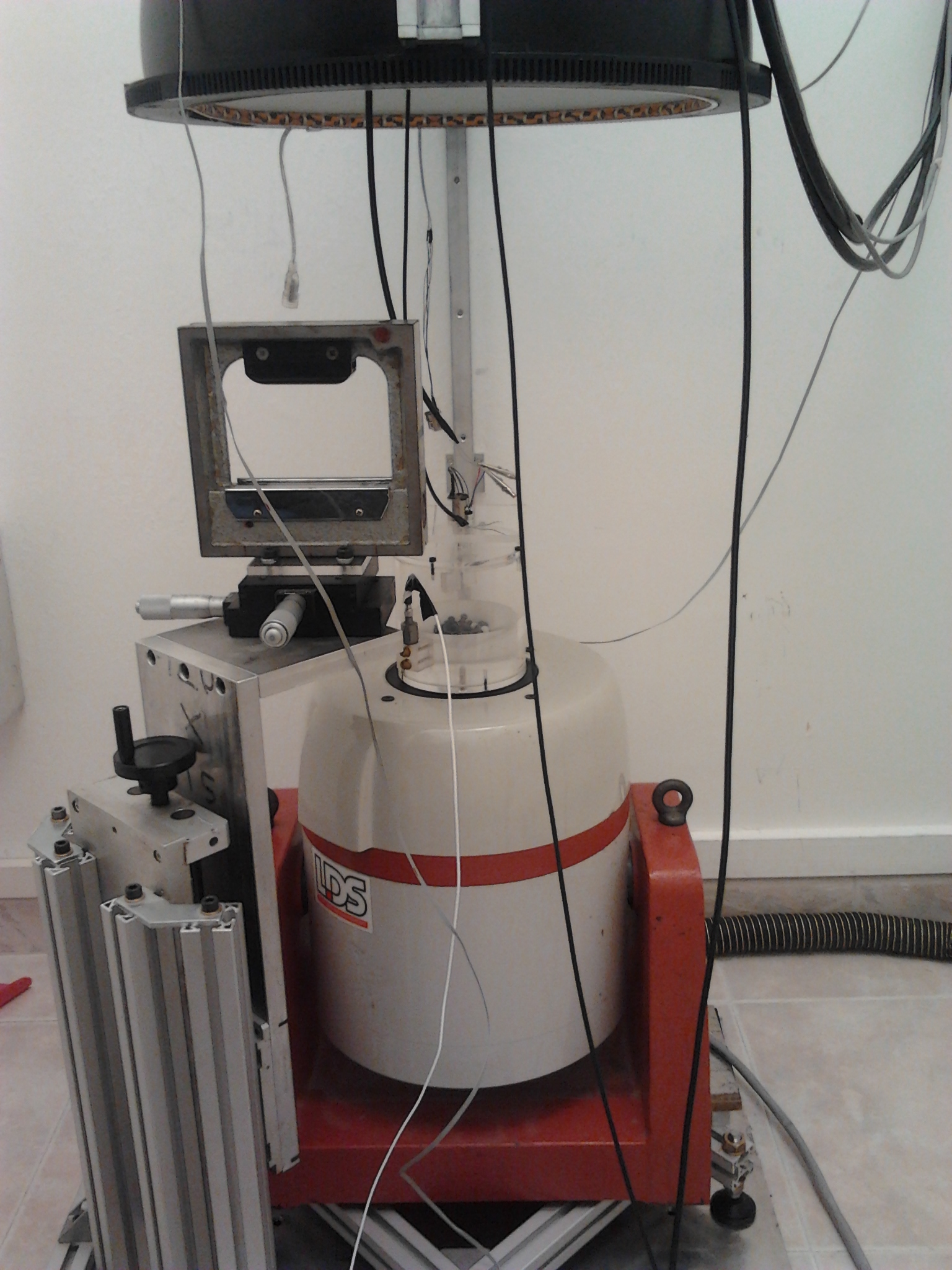

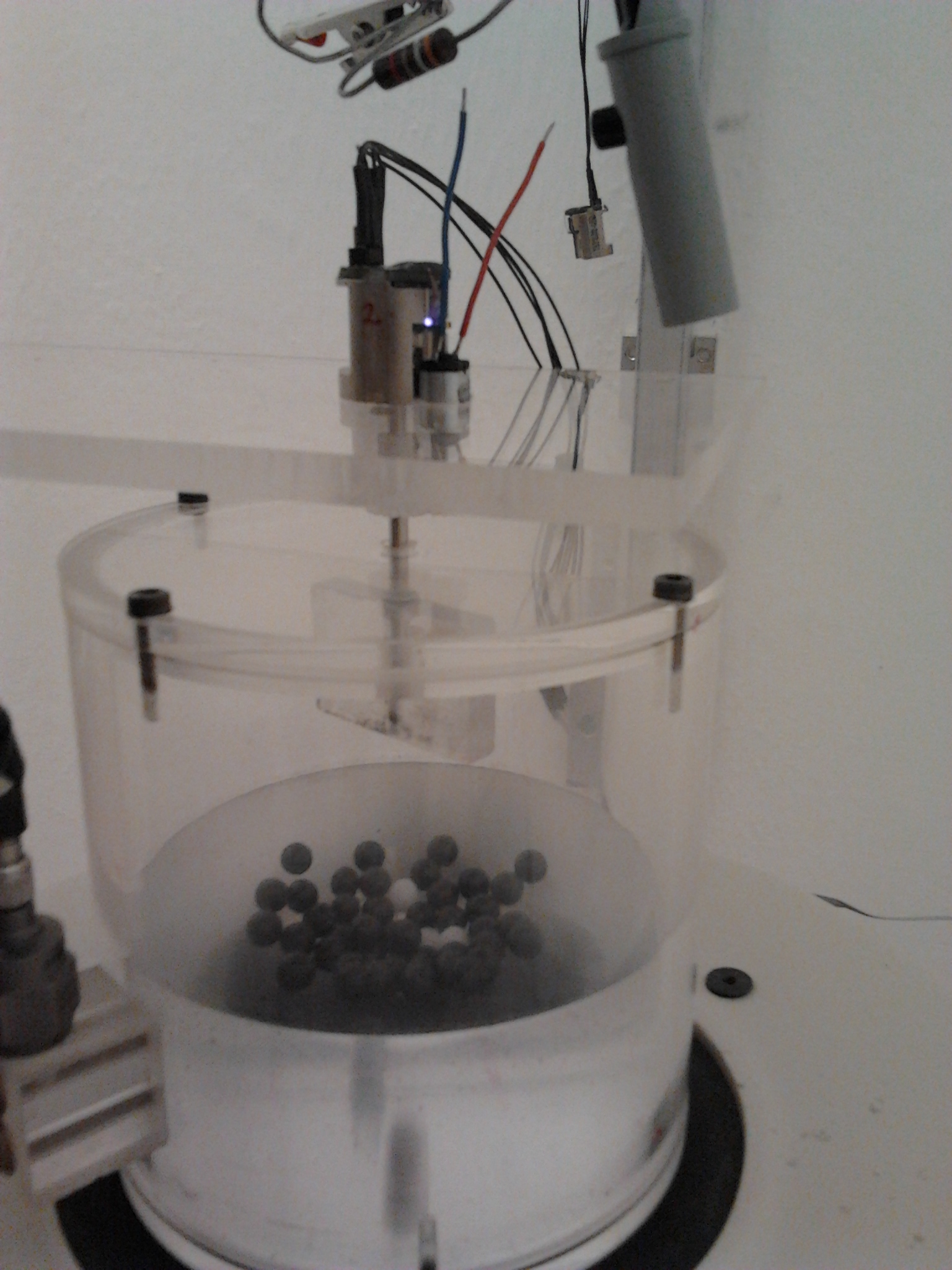

A second series of experiments with the same shaker and a different geometry: the granular gas is now in 3D in a cylindrical container. A rotating blade is suspended from above and performs granular brownian motion.

Experiments with this setup have shown


  • the effect of dry friction in granular brownian motion


A. Gnoli, A. Puglisi, H. Touchette
Granular Brownian motion with dry friction
Europhys. Lett. 102, 14002 (2013)


  • the effect of asymmetry and the realization of a brownian ratchet effect which is, in part, due to inelasticity and in part due to dry friction


A. Gnoli, A. Petri, F. Dalton, G. Gradenigo, G. Pontuale, A. Sarracino, A. Puglisi
Brownian Ratchet in a Thermal Bath Driven by Coulomb Friction
Phys. Rev. Lett. 110, 120601 (2013)

A. Gnoli, A. Sarracino, A. Petri, A. Puglisi
Non-equilibrium fluctuations in frictional granular motor: experiments and kinetic theory
Phys. Rev. E. 87, 052209 (2013)


  • the violation of the fluctuation-response relation

A. Gnoli, A. Puglisi, A. Sarracino and A. Vulpiani
Nonequilibrium Brownian Motion beyond the Effective Temperature
Plos One 9, e93720 (2014)


  • cage effects and long-time superdiffusion in vibrated dense packings


C. Scalliet, A. Gnoli, A. Puglisi, A. Vulpiani,
Cages and anomalous diffusion in vibrated dense granular media
Phys. Rev. Lett. 114, 198001 (2015)



The second setup has revelead to be ideal for a closer comparison with granular kinetic theories and hydrodynamics. Such a comparison has revealed an unknown important effect: the presence of thermal convection induced only by dissipative collisions with the lateral walls.

G. Pontuale, A. Gnoli, F. Vega Reyes, A. Puglisi
Thermal convection in granular gases with dissipative lateral walls
Phys. Rev. Lett. 117, 098006 (2016)
